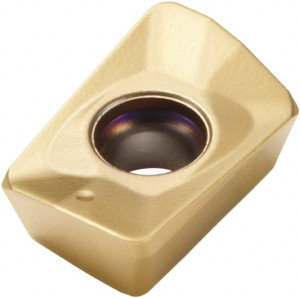

Seco Tools XOMX 10T308TR-M09 Carbide Milling Insert TiAlN Finish, 0.436" Long x 0.151" Thick x 0.27" Wide 02783923 - 92542497

Seco Tools XOMX 10T308TR-M09 Carbide Milling Insert TiAlN Finish, 0.436" Long x 0.151" Thick x 0.27" Wide 02783923 - 92542497

Brand:   Seco Tools
SKU:
92542497
ID:
662860
callling
$29.43
Current Stock:
Adding to cart… The item has been added

Seco Tools

Seco Tools XOMX 10T308TR-M09 Carbide Milling Insert TiAlN Finish, 0.436" Long x 0.151" Thick x 0.27" Wide

Manufacturer Part #: 02783923

S/N: 92542497

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleXOMX
Insert Size10
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeMP3000
Corner Radius (Decimal Inch)0.0315
Number Of Cutting Edges2
Thickness (Decimal Inch - 4 Decimals)0.1508
Coating/FinishTiAlN
Relief Angle15
Maximum Depth of Cut (Decimal Inch)0.3661
Insert Size Code10T308
Material GradeMicrograin
Inscribed Circle (Decimal Inch)0.2717
Thickness Range (Decimal Inch)0.1500 to 0.1750
Corner Radius (Inch)1/32
Inscribed Circle Range (Decimal Inch)0.2500 to 0.3000
Length Range (Decimal Inch)0.3200 to 0.4000
Insert HandRight Hand
SeriesXOMX-10
Coating ProcessPVD
Hole Diameter (Decimal Inch)0.1181
Cutting Edge Effective Length (Decimal Inch)0.3661
RakePositive
Primary Workpiece MaterialHard Material
Primary Workpiece Material CodeH
Secondary Workpiece MaterialSteel, Stainless Steel
Secondary Workpiece Material CodeP, M
Ansi CodeXOMX10T308TR-M09
Iso CodeXOMX10T308TR-M09
StandardsISO
Rake Angle10.6
Cutting Edge StyleT-Land
Manufacturers Catalog NumberXOMX10T308TR-M09
Cutter Series CompatibilityR217.69-10, R220.69-10
Chip BreakerM09
Material ApplicationSteel, Stainless Steel, Hard Material
ShapeParallelogram
Insert Holding MethodScrew
Coating ClassificationPVD
Single or Double Sided InsertSingle
Included Angle Degree90
Width (Decimal Inch - 4 Decimals)0.2717
Multi-Use ToolYes
Length (Decimal Inch - 4 Decimals)0.3661
