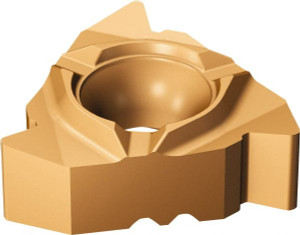

Sandvik Coromant 266RG-16UN01A130M 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 13 TPI, 3/8" Inscribed Circle, 5/32" Thick 5781918 - 92666122

Sandvik Coromant 266RG-16UN01A130M 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 13 TPI, 3/8" Inscribed Circle, 5/32" Thick 5781918 - 92666122

Brand:   Sandvik Coromant
SKU:
92666122
ID:
665352
callling
$45.98
Current Stock:
Minimum Purchase:
10 units
Adding to cart… The item has been added

Sandvik Coromant

Sandvik Coromant 266RG-16UN01A130M 1125 Carbide Laydown Threading Insert TiCrAlN/TiAlN Finish, RH External UN Thread, 13 TPI, 3/8" Inscribed Circle, 5/32" Thick

Manufacturer Part #: 5781918

S/N: 92666122

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style266
Insert Size Code16
Insert MaterialSolid Carbide
Manufacturer Grade1125
Threads Per Inch13
Thread TypeExternal
Thread StandardUN
Insert HandRight Hand
Thickness (Inch)5/32
Thickness (mm)3.97
Included Angle60
ChipbreakerA
SeriesCoroThread 266
Coating ProcessPVD
Inscribed Circle (mm)9.53
Inscribed Circle (Inch)3/8
Hole Diameter (Mm) ( - 0 Decimals)4.40
Hole Diameter (Decimal Inch)0.1732
Number of Teeth Per Side1
Manufacturers Catalog Number266RG-16UN01A130M 1125
Thickness (Decimal Inch - 4 Decimals)0.1563
Coating/FinishTiAlN, TiCrAlN
UNSPSC Code23291804
