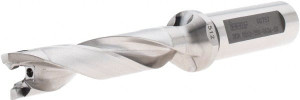

Iscar 0.512 to 0.528", 5xD, 2.56" Max Depth, 5/8" Shank Diam, 5.14" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Inserts, DCN Toolholder, Series SumoCham 3202447 - 92819580
Brand: Iscar- SKU:
- 92819580
- ID:
- 645392
$540.75
Iscar 0.512 to 0.528", 5xD, 2.56" Max Depth, 5/8" Shank Diam, 5.14" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Inserts, DCN Toolholder, Series SumoCham
Manufacturer Part #: 3202447
S/N: 92819580
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (Decimal Inch) | 0.5280 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.5600 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 5/8in |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Compatible Insert Style | FCP, ICK, ICK-2M, ICM, ICP, iCP-2M |
| Overall Length (Decimal Inch) | 5.1400in |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 3.2500in |
| Shank Length (Decimal Inch) | 1.8900in |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
