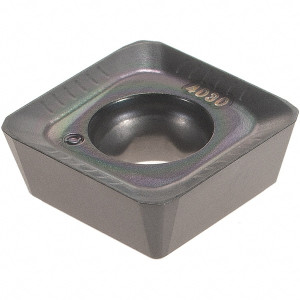

Ingersoll Cutting Tools SDMS1305MDR-PH IN4030 Carbide Milling Insert TiAlN/AlCrO Finish 2901937 - 92915297
Brand: Ingersoll Cutting Tools- SKU:
- 92915297
- ID:
- 659936
$37.27
Ingersoll Cutting Tools SDMS1305MDR-PH IN4030 Carbide Milling Insert TiAlN/AlCrO Finish
Manufacturer Part #: 2901937
S/N: 92915297
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SDMS |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IN4030 |
| Corner Radius (Decimal Inch) | 0.0295 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2000 |
| Coating/Finish | TiAlN, AlCrO |
| Relief Angle | 15 |
| Insert Size Code | 1305 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | SDMS |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Ansi Code | SDMS1305MDR-PH K IN4030 |
| Iso Code | SDMS1305MDR-PH IN4030 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 2901937 |
| Cutter Series Compatibility | 15M1P, 5M5P |
| Chip Breaker | PH |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5118 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
