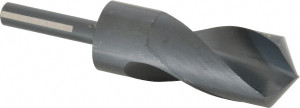

Chicago-Latrobe 1-15/32" 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Flats on Shank, 6" OAL, 3-1/8" Flute Length, Spiral Flute, Series 190F 52494 - 93076602
Brand: Chicago-Latrobe- SKU:
- 93076602
- ID:
- 741825
$325.30
Chicago-Latrobe 1-15/32" 118° 1/2" Shank Oxide Finish High Speed Steel Silver & Deming Reduced Shank Drill Bit Flats on Shank, 6" OAL, 3-1/8" Flute Length, Spiral Flute, Series 190F
Manufacturer Part #: 52494
S/N: 93076602
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1-15/32 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Standard |
| Shank Type | Weldon |
| Flute Length (Inch) | 3-1/8 |
| Overall Length (Inch) | 6 |
| Coating/Finish | Coated |
| Series | 190F |
| Number Of Flats | 3 |
| Drill Bit Size (Decimal Inch) | 1.4688 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0015 in |
| Tool Performance | General Purpose |
| Tool Application | Portable Drilling |
| Drill Length Type | Reduced Shank |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (mm) | 57.15 |
| Primary Workpiece Material | Wood |
| Secondary Workpiece Material | Alloy Steel, Carbon Steel, Cast Iron, Wood |
| Coolant | No |
