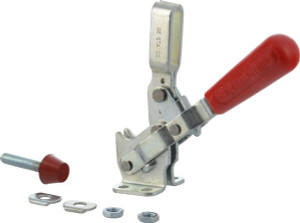

Destaco 375 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 57° Handle Movement, 99° Bar Opening, U-Bar, Flanged Base, Carbon Steel 207-U - 93153773
Brand: Destaco- SKU:
- 93153773
- ID:
- 441491
$26.50
Destaco 375 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 57° Handle Movement, 99° Bar Opening, U-Bar, Flanged Base, Carbon Steel
Manufacturer Part #: 207-U
S/N: 93153773
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical | ||
| Bar Style | U-Bar | ||
| Base Style | Flanged | ||
| Bar End Type | Fixed Spindle | ||
| Holding Capacity (N) | 1670.00 | ||
| Holding Capacity (Lb.) | 375.43 | ||
| Length Distance Between Mount Holes (mm) | 19.05 | ||
| Length Distance Between Mount Holes | 0.75in, 19.05mm | ||
| Length Distance Between Mount Holes (Inch) | 0.75 | ||
| Width Distance Between Mount Holes (mm) | 31.75 | ||
| Width Distance Between Mount Holes | 1.25in, 31.75mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 | ||
| Height Under Bar (Decimal Inch) | 1.2500 | ||
| Height Under Bar (mm) | 31.75 | ||
| Overall Height (Decimal Inch) | 6.9300 | ||
| Overall Height (Mm - 5 Decimals) | 176.02 | ||
| Base Length (mm) | 35.05 | ||
| Base Width (Inch) | 1.7300 | ||
| Base Width | 43.94 | ||
| Handle Style | Straight | ||
| Material | Carbon Steel | ||
| Handle Material | Carbon Steel | ||
| Handle Color | Red | ||
| Mounting Hole Diameter (mm) | 7.11 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.2800 | ||
| Bar Opening (Degrees) | 99 | ||
| Handle Movement (Degrees) | 57 | ||
| Maximum Mechanical Advantage | 06 | 01, 12 | 01 |
| Spindle Travel (Inch) | 1.3000 | ||
| Spindle Travel (mm) | 33.02 | ||
| Bar Width (mm) | 16.00 | ||
| Bar Width (Decimal Inch) | 0.6300 | ||
| UNSPSC Code | 31162902 | ||
| Front Of Base To Toggle Tip | 2.14in | ||
| Includes | Flanged Washers, Spindle Assembly | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.1400 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 54.36 | ||
| Number Of Mounting Holes | 4 |
