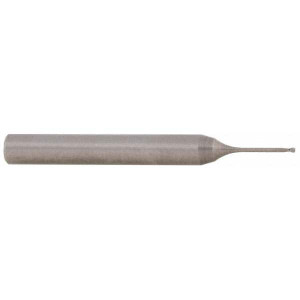

Accupro 6mm Diam 2 Flute Solid Carbide 1mm Corner Radius End Mill AlTiN Finish, 57mm OAL, 6mm LOC, 6mm Shank Diam, 30° Helix, RH Cut, RH Flute, Centercutting, 16mm Extended Reach 12177372 - 93162071
Brand: Accupro- SKU:
- 93162071
- ID:
- 612784
$57.90
Accupro 6mm Diam 2 Flute Solid Carbide 1mm Corner Radius End Mill AlTiN Finish, 57mm OAL, 6mm LOC, 6mm Shank Diam, 30° Helix, RH Cut, RH Flute, Centercutting, 16mm Extended Reach
Manufacturer Part #: 12177372
S/N: 93162071
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 6.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0394 |
| Variable Index | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.00 |
| Overall Length (mm) | 57.00 |
| Helix Angle | 30 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3150 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Diameter (mm) | 6.00 |
| Reach Length (mm) | 16.00 |
| Corner Radius Tolerance | 0.00150 in |
| Mill Diameter Tolerance | +0.000000 to -0.002500 in |
| Shank Diameter Tolerance | -0.0001 to -0.0004 in |
| Material Grade | Micrograin |
