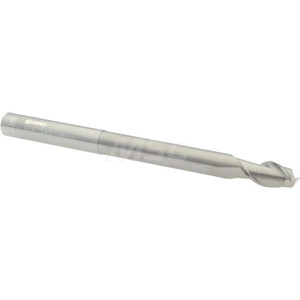

Accupro 8mm, 14mm LOC, 8mm Shank Diam, 100mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute 12177228 - 93162543
Brand: Accupro- SKU:
- 93162543
- ID:
- 626000
$80.68
Accupro 8mm, 14mm LOC, 8mm Shank Diam, 100mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 12177228
S/N: 93162543
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5512 |
| Length of Cut (mm) | 14.00 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 100.00 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Helix Angle | 40 |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Long |
| Reach Length (mm) | 64.00 |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
