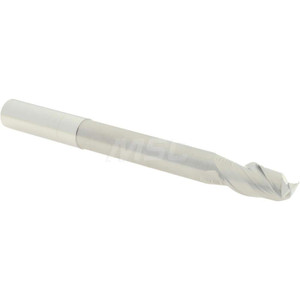

Accupro 3/8", 3/4" LOC, 3/8" Shank Diam, 4" OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute 12177160 - 93162717
Brand: Accupro- SKU:
- 93162717
- ID:
- 626145
$81.60
Accupro 3/8", 3/4" LOC, 3/8" Shank Diam, 4" OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 12177160
S/N: 93162717
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Helix Angle | 40 |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Long |
| Reach Length (Inch) | 2-3/4 |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
