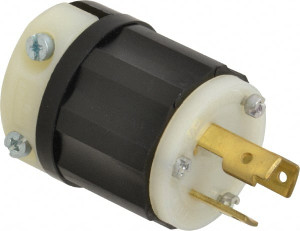

Leviton 125 VAC 30A NEMA L5-30P Industrial Twist Lock Plug 2 Poles, 3 Wires, 1 Phase, Self-Grounding, 0.385 to 0.86" Cord Diam, Black/White 2611-PLC - 93282549
Brand: Leviton- SKU:
- 93282549
- ID:
- 597690
$91.89
Leviton 125 VAC 30A NEMA L5-30P Industrial Twist Lock Plug 2 Poles, 3 Wires, 1 Phase, Self-Grounding, 0.385 to 0.86" Cord Diam, Black/White
Manufacturer Part #: 2611-PLC
S/N: 93282549
UNSPSC: 39121400
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Connector Type | Plug |
| Grade | Industrial |
| Material | Nylon |
| Grounding Style | Self-Grounding |
| Amperage | 30 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Color | Black, White |
| Minimum Cord Diameter (Decimal Inch) | 0.3850 |
| Maximum Cord Diameter (Decimal Inch) | 0.8600 |
| Number Of Phases | 1 |
| Standards | ANSI C-73, CSA C22.2 No. 42 File LR-406, CSA Certified, NEMA WD-6, NOM 057, UL 498 File E13393, UL Federal Specification W-C-596 File E13393, UL Listed |
| Nema Configuration | L5-30P |
