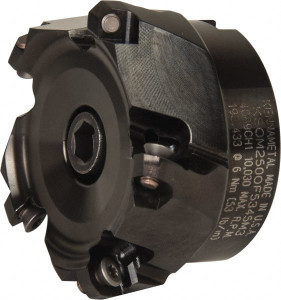

Kennametal 2-1/2" Cut Diam, 3/4" Arbor Hole, 3.5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill Takes 5 Inserts, OF.T 06L5. Insert, Right Hand Cut, 5 Flutes, Series KSOM Mini 3093635 - 93428514
Brand: Kennametal- SKU:
- 93428514
- ID:
- 680495
$871.93
Kennametal 2-1/2" Cut Diam, 3/4" Arbor Hole, 3.5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill Takes 5 Inserts, OF.T 06L5. Insert, Right Hand Cut, 5 Flutes, Series KSOM Mini
Manufacturer Part #: 3093635
S/N: 93428514
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.8460 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Compatible Insert Size Code | OF.T 06L5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | KSOM Mini |
| Hub Diameter (mm) | 50.45 |
| Hub Diameter (Decimal Inch) | 1.9860 |
| Keyway Width (Decimal Inch) | 0.3130 |
| Overall Height (Mm - 5 Decimals) | 39.88 |
| Overall Height (Decimal Inch) | 1.5700 |
| Maximum Body Diameter (Decimal Inch) | 2.8460 |
| Pitch Type | Medium |
| Maximum RPM | 10030 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
