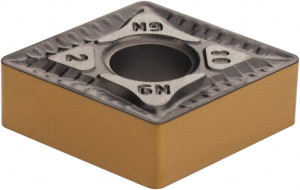

Iscar CNMG432GN IC807 Carbide Turning Insert TiAlN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond 5507797 - 93523454
Brand: Iscar- SKU:
- 93523454
- ID:
- 670755
$19.58
Iscar CNMG432GN IC807 Carbide Turning Insert TiAlN Finish, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond
Manufacturer Part #: 5507797
S/N: 93523454
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC807 |
| Coating/Finish | TiAlN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | M, P, S |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | GN |
| Insert Size Code | 432 |
