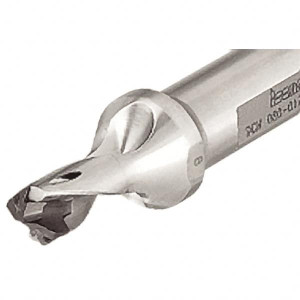

Iscar 19 to 19.9mm, 1.5xD, 29mm Max Depth, 25mm Shank Diam, 114.5mm OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 19, DCN Toolholder, Series SumoCham 3202501 - 93650018

Iscar 19 to 19.9mm, 1.5xD, 29mm Max Depth, 25mm Shank Diam, 114.5mm OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 19, DCN Toolholder, Series SumoCham 3202501 - 93650018

Brand:   Iscar
SKU:
93650018
ID:
645251
callling
$563.65
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 19 to 19.9mm, 1.5xD, 29mm Max Depth, 25mm Shank Diam, 114.5mm OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 19, DCN Toolholder, Series SumoCham

Manufacturer Part #: 3202501

S/N: 93650018

UNSPSC: 23291502

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Drill Diameter (mm)19.00
Maximum Drill Diameter (mm)19.90
Maximum Drill Depth (mm)29.00
Shank TypeWeldon Flat
Insert Seat Size19
Shank Diameter (mm)25.00mm
Maximum Drill Depth Range (mm)0.00 to 40.00
Compatible Insert StyleFCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M
Overall Length (mm)114.50mm
SeriesSumoCham
Toolholder StyleDCN
Body Length58.50
Shank Length (mm)56.00mm
Tool ApplicationHolemaking
StandardsISO 13399
Coolant ThroughYes
UNSPSC Code23291502
