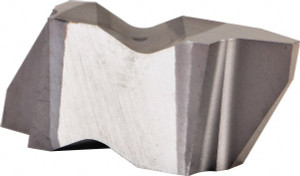

Kennametal NA3R4 KCU25 Carbide Threading Insert AlTiN Finish, Internal/External, Acme, 4 TPI, Series Top Notch 4109630 - 93924793
Brand: Kennametal- SKU:
- 93924793
- ID:
- 666898
$41.29
Kennametal NA3R4 KCU25 Carbide Threading Insert AlTiN Finish, Internal/External, Acme, 4 TPI, Series Top Notch
Manufacturer Part #: 4109630
S/N: 93924793
UNSPSC: 23291804
(Minimum Order Quantity=5, Package Quantity=5)
Specifications:
| Insert Style | NA |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Thread Standard | Acme |
| Insert Hand | Right Hand |
| Internal Pitch | 4 TPI |
| Included Angle | 29degree |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1331 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (mm) | 0.13mm |
| Width of Cutting Tip (mm) | 2.22 |
| Width of Cutting Tip (Decimal Inch) | 0.0874 |
| Thickness (mm) | 4.95mm |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949in |
| Finish Coating | AlTiN |
| Thread Type | Internal, External |
| UNSPSC Code | 23291804 |
