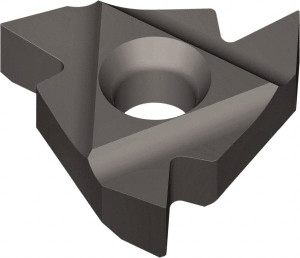

Vargus 3IR8UN VTX Carbide Laydown Threading Insert TiAlN Finish, RH Internal UN Thread, 8 TPI, 9.53mm Inscribed Circle, 3.6mm Thick 52853 - 93969814
Brand: Vargus- SKU:
- 93969814
- ID:
- 665961
$28.83
Vargus 3IR8UN VTX Carbide Laydown Threading Insert TiAlN Finish, RH Internal UN Thread, 8 TPI, 9.53mm Inscribed Circle, 3.6mm Thick
Manufacturer Part #: 52853
S/N: 93969814
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 3IR | ||
| Insert Size Code | 3 | ||
| Insert Material | Solid Carbide | ||
| Manufacturer Grade | VTX | ||
| Threads Per Inch | 8 | ||
| Thread Type | Internal | ||
| Thread Standard | UN | ||
| Insert Hand | Right Hand | ||
| Thickness (mm) | 3.60 | ||
| Included Angle | 60 | ||
| Series | Standard | ||
| Coating Process | PVD | ||
| Inscribed Circle (mm) | 9.53 | ||
| Inscribed Circle (Inch) | 3/8 | ||
| Primary Workpiece Material | Universal | ||
| Primary Workpiece Material Code | H, K, M, N, P, S | ||
| Standards | ANSI B1.1 | 74, ISO 9001 | 2008 |
| Number of Teeth Per Side | 1 | ||
| Coating/Finish | TiAlN | ||
| UNSPSC Code | 23291804 |
