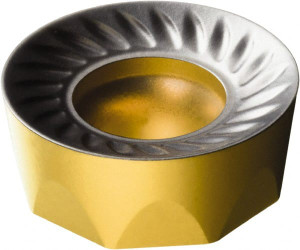

Sandvik Coromant RCKT 09 T3 00-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 5/32" Thick 7564605 - 94096278
Brand: Sandvik Coromant- SKU:
- 94096278
- ID:
- 662321
$19.00
Sandvik Coromant RCKT 09 T3 00-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 5/32" Thick
Manufacturer Part #: 7564605
S/N: 94096278
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | RCKT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 4330 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Relief Angle | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Insert Size Code | 09T300 |
| Material Grade | P30, M30, K30 |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 3/16 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Series | RCKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | RCKT 09 T3 00-PM 4330 |
| Iso Code | RCKT 09 T3 00-PM 4330 |
| Standards | ANSI, ISO |
| Convex Radius (Decimal Inch) | 0.1875 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | RCKT 09 T3 00-PM 4330 |
| Cutter Series Compatibility | N331.32, R331.32, RA200, SRACL |
| Chip Breaker | PM |
| Material Application | Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
