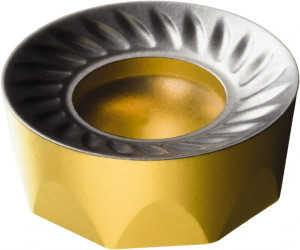

Sandvik Coromant RCKT 13 04 00-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 3/16" Thick 7564616 - 94113271
Brand: Sandvik Coromant- SKU:
- 94113271
- ID:
- 662325
$22.53
Sandvik Coromant RCKT 13 04 00-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 3/16" Thick
Manufacturer Part #: 7564616
S/N: 94113271
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | RCKT |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 4330 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Relief Angle | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0732 |
| Insert Size Code | 130400 |
| Material Grade | P30, M30, K30 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/4 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | RCKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | RCKT 13 04 00-PM 4330 |
| Iso Code | RCKT 13 04 00-PM 4330 |
| Standards | ANSI, ISO |
| Convex Radius (Decimal Inch) | 0.2500 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | RCKT 13 04 00-PM 4330 |
| Cutter Series Compatibility | N331.32, R331.32, RA200 |
| Chip Breaker | PM |
| Material Application | Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
