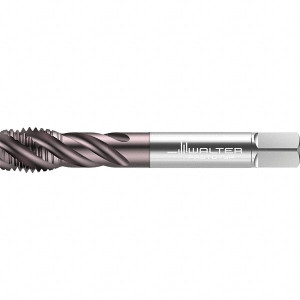

Walter Prototyp Spiral Flute Tap: UNC, 4 Flute, Bottoming, 2B/3B Class of Fit, High-Speed Steel, TiAlN Finish 18.00 mm Thread Length, 110.00 mm OAL, Right Hand Flute, Right Hand Thread, Series TC117 7557052 - 95979019
Brand: Walter Prototyp- SKU:
- 95979019
- ID:
- 772413
$160.65
Walter Prototyp Spiral Flute Tap: UNC, 4 Flute, Bottoming, 2B/3B Class of Fit, High-Speed Steel, TiAlN Finish 18.00 mm Thread Length, 110.00 mm OAL, Right Hand Flute, Right Hand Thread, Series TC117
Manufacturer Part #: 7557052
S/N: 95979019
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | High-Speed Steel |
| Class Of Fit | 2B/3B |
| Coating/Finish | TiAlN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Number Of Flutes | 4 |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Oversize | No |
| Threads per Inch | 13 |
| Thread Length (Decimal Inch) | 0.7090 |
| Thread Length (mm) | 18.00 |
| Overall Length (mm) | 110.00 |
| Material Grade | WY80RG |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Tapping Depth (Decimal Inch) | 3.2240 |
| Tapping Depth (mm) | 81.90 |
| Square Length (mm) | 11.10 |
| Square Length (Decimal Inch) | 0.4370 |
| Square Size (Decimal Inch) | 0.2750 |
| Square Size (mm) | 6.99 |
| Flute Style | Spiral |
| Series | TC117 |
