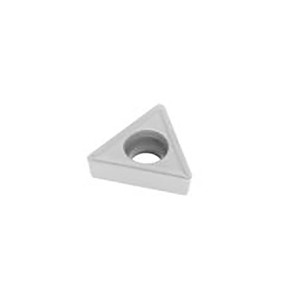

Seco Tools TCMT432-M3 TP25 Carbide Turning Insert TiCN/Al2O3 Finish, Neutral, 0.8661" Long, 1/2" Inscribed Circle, 0.0315" Corner Radius, 0.188" Thick, 60° Triangle, Series TCMT 03276604 - 96216841
Brand: Seco Tools- SKU:
- 96216841
- ID:
- 676862
$31.04
Seco Tools TCMT432-M3 TP25 Carbide Turning Insert TiCN/Al2O3 Finish, Neutral, 0.8661" Long, 1/2" Inscribed Circle, 0.0315" Corner Radius, 0.188" Thick, 60° Triangle, Series TCMT
Manufacturer Part #: 03276604
S/N: 96216841
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60degree |
| Manufacturer Grade | TP25 |
| Coating/Finish | TiCN, Al2O3, Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | TCMT-M3 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Maximum Depth of Cut (Decimal Inch) | 0.7890 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8661 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel, Cast Iron |
| Secondary Workpiece Material Code | M, K |
| Iso Code | TCMT220408-M3 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 03276604 |
| Material Grade | P20, P30, P35 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 60degree |
| Coating Classification | CVD |
| Chip Breaker | M3 |
| Rake Angle | 17 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | TCMT432-M3 |
| Width (Decimal Inch - 4 Decimals) | 0.8661in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
