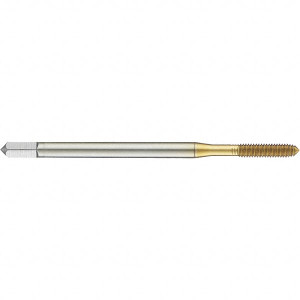

Guhring Thread Forming Tap: M1.4x0.30 Metric, 6HX Class of Fit, Modified Bottoming, High Speed Steel, TiN Coated 6 mm Thread Length, 40 mm OAL, D4/D5, Series 921 9009210014000 - 98855570
Brand: Guhring- SKU:
- 98855570
- ID:
- 781617
$69.53
Guhring Thread Forming Tap: M1.4x0.30 Metric, 6HX Class of Fit, Modified Bottoming, High Speed Steel, TiN Coated 6 mm Thread Length, 40 mm OAL, D4/D5, Series 921
Manufacturer Part #: 9009210014000
S/N: 98855570
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M1.4x0.3 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E-CO |
| Coating/Finish | Titanium Nitride |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Thread Limit | D4, D5 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.2362 |
| Thread Length (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.0984 |
| Shank Diameter (mm) | 2.50 |
| Material Application | Steel, Stainless Steel, Non-Ferrous Metal |
| Application | Blind Hole Threading, Through-Hole Threading |
| Series | 921 |
| Square Size (Decimal Inch) | 0.0827 |
| Square Size (mm) | 2.10 |
| Flute By Diameter Ratio | 1.5xD |
| Oil Grooves | 0 |
| Material Application Code | P, M, N |
