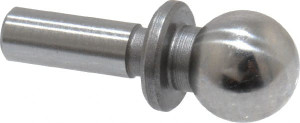

Jergens 1/4" Ball Diam, 1/8" Shank Diam, Steel Inspection Tooling Ball Slip-Fit Shank, 9/16" Ball Center to Shank Bottom, 0.2" Ball Center to Shoulder Bottom, with Shoulder 29041 - 99095408
Brand: Jergens, Inc.- SKU:
- 99095408
- ID:
- 446131
$64.97
Jergens 1/4" Ball Diam, 1/8" Shank Diam, Steel Inspection Tooling Ball Slip-Fit Shank, 9/16" Ball Center to Shank Bottom, 0.2" Ball Center to Shoulder Bottom, with Shoulder
Manufacturer Part #: 29041
S/N: 99095408
UNSPSC: 27112818
UPC: 697830290413
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tooling Ball Style | Inspection |
| Shoulder | Yes |
| Breakaway | No |
| Tapped Shank | No |
| Heat-treated | Yes |
| Material | Steel |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter | 0.125in, 1/8in, 3.18mm |
| Shank Attachment Type | Slip-Fit |
| Shank Tolerance (Decimal Inch) | +0.0000, -0.0004 |
| Ball Diameter (Decimal Inch) | 0.2500 |
| Ball Diameter (Inch) | 1/4 |
| Ball Diameter (mm) | 6.35 |
| Ball Center to Shank Bottom (Inch) | 9/16 |
| Ball Center to Shank Bottom (Decimal Inch) | 0.5625 |
| Ball Tolerance (Decimal Inch) | 0.0002 |
| Shoulder Diameter | 1/4 |
| Ball Center to Shoulder Bottom (Decimal Inch) | 0.2000 |
| Ball Center to Shoulder Tolerance (Decimal Inch) | 0.0002 |
| Ball and Shank Concentricity (Decimal Inch) | 0.0002 |
