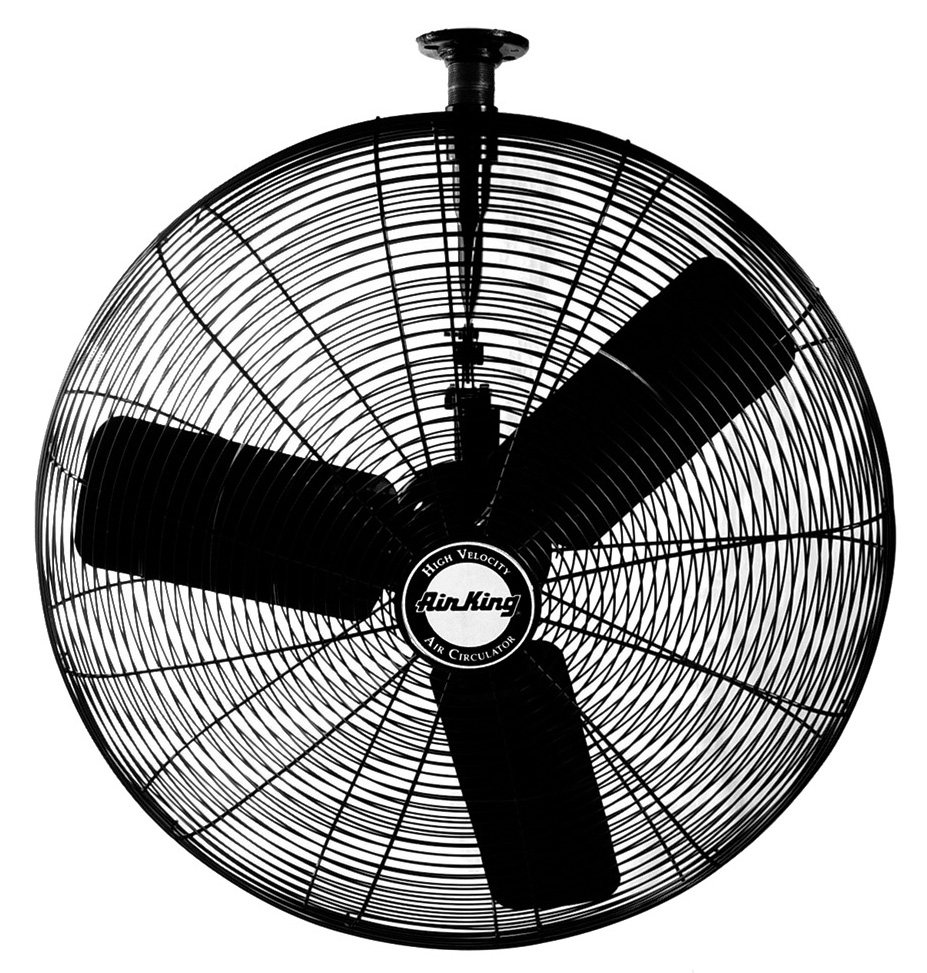

Air King Ceiling Mount Fan, 30" 1/4 HP Oscillating - AK9335
Brand: Air King- SKU:
- AK9335
- ID:
- 329587
| Size | 30" |
| HP | 1/4 HP |
$479.95
Air King Ceiling Mount Fan, 30" 1/4 HP Oscillating
Industrial Grade Ceiling Mount Fans
Motor:
- 9335: 3-speed, 1/4 HP, 120V, 1 phase, totally enclosed, ball bearing, permanently lubricated, permanent split capacitor
Controls: Rear mounted pull cord switch.
Power Cord: Black, 10 ft., 3-conductor, SJT type (models 9320, 9718 - 9 ft.)
Coating: Blade, Guard, and Mounts are Powder coated steel.
Compliance: ETL, OSHA.
What is included with the unit?
- Unassembled fan head with blade, motor (including power cord), and grills (models 9320 and 9718 come with already assembled fan heads)
- Ceiling mount bracket with assembly hardware
- Secondary safety cable
- User Manual
| Model # | Type |
| 9335 | 30" 1/4 HP Oscillating Ceiling Mount Fan |
Specifications:
| 1/4 HP Ceiling Mount Fans | |
| Models | 9335 |
| Blade Size | 30" |
| CFM (High/Med/Low) | 7400 / 6360 / 4980 |
| RPM (High/Med/Low) | 1040 / 902 / 860 |
| AMPS (High/Med/Low) | 2.4 / 1.9 / 1.5 |
| Watts (High/Med/Low) | 255 / 200 / 154 |
| dB (High/Med/Low) | 75 / 71 / 67 |
| Adjustable Height | N/A |
| Oscillation | Yes |
| Weight (lbs.) | 44.9 |
| Cube (feet) | 6.03 |
| Dimensions (L x W x H) |
33.5" x 29" x 36.75" |
| Specification Sheet | 9335 |
| Instructions | Download Instructions |
