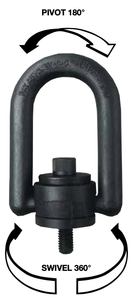

American Drill Heavy Duty Hoist Ring, 1/2"-13 Thread Size, 2,500 lbs. Rated Load - 33215
Brand: American Drill Bushing- SKU:
- 99-025-354
- ID:
- 285225
$182.95
American Drill Heavy Duty Hoist Ring, 1/2"-13 Thread Size, 2,500 lbs. Rated Load - 33215
- 100% magnetic particle inspected.
- Eye opening is larger.
- Minimum safety factor: 5:1
- Meets military specification #MIL-STD 1365 (11) or #MIL-STD 209C.
- Meets OSHA standards.
- Forged high strength 4140 alloy steel.
- 5:1 magnetic particle inspected per ASTM 1444.
- Hoist rings retain same rated WLL from 0° to 90° from the bolt axis.
- Standard tolerance + - .030" unless otherwise specified.
- Black oxide for corrosion resistance, also available in cadmium, titanium-cadmium, nickel and other plating options.
- Swivels 360°, pivot 180° under load.
- Meets military specification No. MIL-STD 209, meets ANSI / ASME B30.26.
| A | B | D | E | F |
| 1.00" | 3-1/2" | 3/4" | 1" | 5-31/100" |
