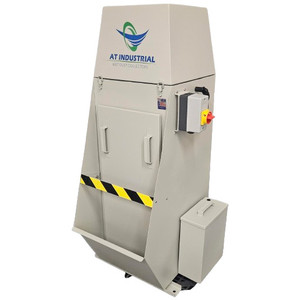

AT Industrial Products C3-1200 Wet Dust Collector, 1200 CFM, 19"W x 29"D x 60"H, 3 HP, 6" Inlet Diameter, 40 gal. Sump Capacity - C3-1200
Brand: AT Industrial Products- SKU:
- C3-1200
- ID:
- 916478
| Dimensions | 19" W x 29" D x 60" H |
| Motor | 3 HP |
| CFM | 1200 |
| Inlet Diameter | 6" |
| Sump Capacity | 40 gal. |
$20,495.00
AT Industrial Products C3-1200 Wet Dust Collector, 1200 CFM, 19"W x 29"D x 60"H, 3 HP, 6" Inlet Diameter, 40 gal. Sump Capacity - C3-1200
Model C3-1200 Specifications:
| Approximate dimensions | 19" W x 29" D x 60" H |
| Est. Shipping Weight | 350 lbs. |
| Sump Capacity | 40 gal. |
| Motor | 3 HP |
| CFM @ Inlet | 1200 |
| Inlet Diameter | 6" |
Applications: Machining, Sawing, Grinding, Deburring, Sanding
Standard Features:
- 304 Stainless Steel Construction
- TEFC Motor 230V-460V/60Hz/3ph
- Standard precision balanced stainless steel impeller (direct coupled to the motor for maximum CFM with minimum vibration)
- Front access maintenance door
- Manual dial type starter
- Automatic water level control
- Sound suppression panels
- Powder coated exterior
- Stainless steel sludge rake for cleaning
Options:
NEMA electrical package
- Starts collector when process machinery is turned on
- Monitors water level to ensure proper CFM production
- Shuts down processing equipment and wet collector when water level is too low or too high.
Extended sump, stainless steel cover and flange
- Moves inlet from vertical to horizontal position
- Eliminates 45° & 90° elbow off the back of the unity
- Allows straight duct to attach to the flange located on top of the sump cover
