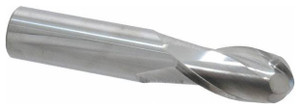

Atrax 2-Flute Centercutting Ball Single End Mill, 3/4" Mill Dia., 3/4" Shank Dia., 1-1/2" LOC - 45-530-3
Brand: Atrax- SKU:
- 45-530-3
- ID:
- 109992
| Mill Diameter | 3/4" |
| Shank Diameter | 3/4" |
| Length of Cut | 1-1/2" |
| Overall Length | 4" |
$218.11
Atrax 2-Flute Centercutting Ball Single End Mill
3/4" Mill Dia., 3/4" Shank Dia., 1-1/2" LOC
30° Helix
Features and Benefits:
- Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Tolerances: | Size | Tolerance |
| Shank Dia. | All Sizes | +.000/-.0005" |
| Cutting Dia. | 1/32 - 1/4" | +.000/-.002" |
| 9/32 - 1" | +.000/-.003" |
Specifications:
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material | Solid Carbide |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Material Grade | Micrograin |
| Helix Angle | 30.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
