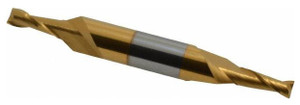

Atrax 2-Flute TiN Coated Centercutting Double End Mill, 3/16" Mill Dia., 3/8" Shank Dia., 1/2" LOC - 45-293-8
Brand: Atrax- SKU:
- 45-293-8
- ID:
- 109925
| Mill Diameter | 3/16" |
| Shank Diameter | 3/8" |
| Length of Cut | 1/2" |
| Overall Length | 3-1/4" |
$55.62
Atrax 2-Flute TiN Coated Centercutting Double End Mill
3/16" Mill Dia., 3/8" Shank Dia., 1/2" LOC
Solid Micrograin Carbide TiN Coated
Surface Treatments: TiN (Titanium Nitride)
Features:
- General purpose use
- Extends tool life
- Used for aggressive machining of steels
- Requires increase of 25 to 30% in machining speeds vs. HSS
| Tolerances: | Size | Tolerance |
| Shank Dia. | All Sizes | +.000/-.0005" |
| Cutting Dia. | 1/32 - 1/4" | +.000/-.002" |
| 9/32 - 1/2" | +.000/-.003" |
Specifications:
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Double |
| Overall Length (Inch) | 3-1/4 |
| Center Cutting | Center Cutting |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 30.00 |
| Material Grade | Micrograin |
| Chipbreaker | No |
See all Atrax 2-Flute TiN Coated Centercutting Double End Mills
