The air in a machine shop is unique: coolant, metal dust, and the aroma of industrial nostalgia. At its center is often the Bridgeport Vertical Mill, a monument to American manufacturing.

It’s the machine your grandfather learned on, and one your newest apprentice still uses. Bridgeport isn’t just a machine; it’s a legacy. But even the most reliable workhorse needs a tune-up. In premium manufacturing, where a tenth of a thousandth of an inch separates excellence from scrap, nostalgia can’t slow you down.

The secret to unlocking Bridgeport’s full potential is in the accessories you use. Here are the essential upgrades from Penn Tool Co. that transform a capable machine into a high-output, ultra-precise racehorse. This is your playbook for maximizing ROI and achieving top tolerances.

The Foundation: Unwavering Workholding

If your workpiece shifts even slightly, the whole operation is compromised. Workholding is the immutable foundation of precision milling.

01 | The Kurt-Style Vise: The Clamping Gold Standard

When you think of a premium Bridgeport mill vise, you think of Kurt Manufacturing. The gold standard, with the famed AngLock design.

How it Works: The AngLock® feature is key. Tightening the screw pulls the workpiece downward and against the stationary jaw, virtually eliminating jaw lift so your part stays firm and flat.

Penn Tool Co. Recommendation: Choose the Kurt DX6 Crossover model for rigidity. Pair with the ChukMate Vise Caddy for quick jaw changes and seamless organization.

The Productivity Boost: With rock-solid clamping, you can confidently increase your feed rates and depths of cut, which means reduced cycle times and a vastly superior surface finish.

02 | The Bridgeport Tooling Kit: Collets and End Mill Holders

You can’t cut with a loose grip. The tool that holds your end mill must be as precise as the mill itself.

R8 Collets: A full R8 Collet Set is mandatory. Opt for high-quality, precision-ground collets to ensure minimal runout and a concentric grip on different shank sizes.

End Mill Holders: For heavy-duty milling, R8 End Mill Holders offer a more rigid grip than standard Bridgeport collets. They provide the highest metal-removal rates without sacrificing tool life, especially with larger-diameter cutters.

The Precision Revolution: Digital Readouts (DRO)

Trying to mill without a Bridgeport Digital Readout (DRO) is like driving blind. It’s arguably the most important manual upgrade for Bridgeport.

Bridgeport was born in an era of handwheels and micrometer dials, accurate but slow and prone to human error. The DRO changes the game:

How it Works: A DRO reads linear glass scales on the machine axes (X, Y, Z) to measure table movement. It displays the data instantly, often down to 0.0001 inch resolution.

The Productivity Boost:

Eliminate Backlash: The DRO measures the table itself, not the leadscrew turns, eliminating leadscrew backlash concerns.

Advanced Functions: Modern DROs enable operations like bolt-hole circles, line-of-hole calculations, and cutter compensation, making difficult tasks simple.

The Efficiency Engine: Bridgeport Power Feeds and Drawbars

Time is money. Manual cranking for long cuts slows the process and adds inconsistency.

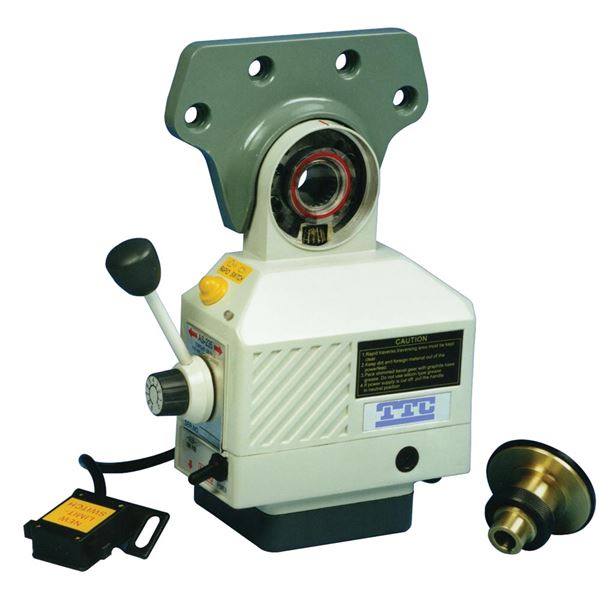

01 | Power Feeds: Effortless, Consistent Motion

A power feed is a motor-and-gearbox assembly mounted to your table that provides smooth, adjustable feed rates.

Penn Tool Co. Recommendation: Align Power Table Feeds set the standard. These assemblies provide steady feed rates of 4-160 RPM and 780 in-lb of torque, ensuring stable X-axis motion.

The Productivity Boost: A Bridgeport Power Feed guarantees a uniform feed rate, resulting in a vastly better surface finish and longer tool life than manual cranking. The operator is freed up to focus on monitoring the cut and managing coolant.

02 | The Power Drawbar: The King of Quick Tool Changes

A standard drawbar requires a long wrench with many turns, which wastes time.

Penn Tool Co. Recommendation: The Kurt PowerLock drawbar (BR-6000) is the essential upgrade for fast R8 collet changes. It uses pneumatic power to quickly loosen and eject the tool.

The Productivity Boost: This upgrade reduces tool change time from minutes to mere seconds. Over a shift, a power drawbar can save hours, making it indispensable for any high-mix or high-volume work.

The Specialty Attachments: Expanding Your Horizons

Bridgeport is famous for its versatility. Key attachments push its operational envelope even further.

01 | Versatility Attachments

Right Angle Heads: These let the cutter rotate on a horizontal axis. They turn the vertical mill into a horizontal mill, letting you work the side of large pieces without re-clamping or re-orienting.

Tilting Tables: For complex mold or die work, a tilting table lets you set the workpiece at a precise angle for machining.

02 | Rotary Tables

Phase II 10-inch rotary tables enable precise indexing. These accessories allow you to rotate the workpiece accurately, which is critical for cutting gear teeth, indexing, and machining perfect arcs and circles.

The Bottom Line: Your Investment in Precision

Bridgeport is the classic blue-collar tool, tough, dependable, and capable. But success in the modern market is about optimized performance.

Investing in the best Bridgeport mill accessories, such as a Kurt vise, DRO, Align feed, and Kurt PowerLock drawbar, can transform your machine’s throughput and quality. Each upgrade enhances your investment in precision, meeting the American manufacturing standard.

Ready to upgrade your shop’s centerpiece? Shop Kurt vises, Align feeds, and Phase II rotary tables at Penn Tool Co. today for Bridgeport mastery. Contact us for a consultation on a custom kit!

Frequently Asked Questions (FAQs)

1. Why should I upgrade my Bridgeport’s vise to a Kurt-style model?
   A Kurt-style vise has the AngLock® design, which pulls the workpiece down as you tighten. This eliminates the need for a jaw lift, keeping parts flat and rigid for better finishes and faster cycles.
2. What is the single most important accessory for improving manual accuracy?
   A Bridgeport Digital Readout (DRO) system is the single most important upgrade. By measuring the actual table movement with linear glass scales (often down to 0.0001”), it eliminates errors from leadscrew backlash and misreading handwheels, making complex operations simple and precise.
3. How does a power drawbar save time in a typical shop?
   A power drawbar like the Kurt PowerLock reduces R8 collet change time from minutes to seconds using pneumatic action. With frequent tool changes, this saves hours daily and boosts shop productivity.
