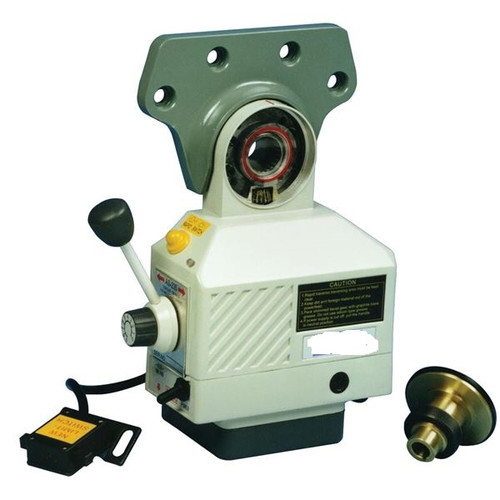

Bridgeport Type Y-AXIS Power Table Feed
Benefits
- Controlled feed rate increases cutting tool life and provides superior finish.
- Increases productivity.
- No more hand cranking.
- No loss of dial or hand crank.
Features
- Reversible.
- Variable speed control allows the operator to select the right speed for the selected cut.
- Limit switch for sensitive stop.
- Auto shut-off at end of cut.
| Type | Power Feed |
| For Use With | Bridgeport® Type |
| Bevel Drive Gear Ratio | 4.8:1 |
| Feed Range | 0-25 Inch/Minute |
| Cycle | 50/60 Cycle |
| Feed Rate | 0-25 Inch/Minute |
| Maximum Torque | 150 Ibs./inch |
| Motor Hp | 110V,60Hz |
| Peak Torque | 150 IPM |
| Phase | 1 PH |
| Power | 110 Volts, 60Hz |
| Price Table Description | Y-Axis |
| Rapid Traverse | 40 Inch/Minute |
| Speed | 4-180 RPM |
| Table Feed | Bridgeport |
| Traversing Speed | 40 Inch/Minute |
| Voltage | 110V |
| Weight | 20 lbs. |
