Precise Countersink Gage - CG-001
Brand: Precise- SKU:
- CG-001
- ID:
- 295526
| Countersink Angle | 82º, 90º, 100º, 110º, 120º,130º |
| Capacity Inch | 0.020" - 0.170" |
$399.95
Precise Countersink Gage - CG-001
Instantly Measure Countersink Diameters

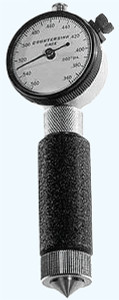

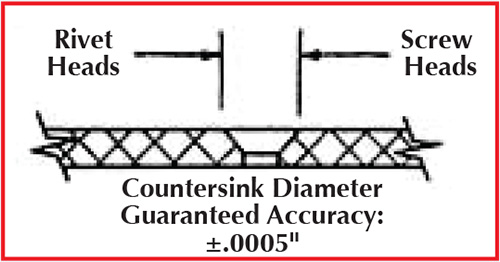

The COUNTERSINK GAGE is a precision instrument designed specifically to measure the top (major) countersink diameter. Merely press the spring loaded, exact angle Gaging Plunger into the countersink and read the dial directly in .002" or 05mm diameter increments on the dial face.
Specify Countersink Angle in the Comment Section
Features:
- 84 Models (42 English/42 Metric) provide a diameter range from .020” (.50mm) to 1.180” (30.00mm). for 82°, 90°, 100°, 110°, 120° and 130° countersink angles.
- Full-round, conically ground, exact (dedicated) angle Gaging Plunger instantly alerts operator of incorrect countersink angle
- "Peak Hold" mechanism, standard on all Models, allows for one-hand operation.
- Every gage furnished with a functionally calibrated Setting Ring and a foam lined Storage Case with complete Operating Instructions.
- Optional NIST Letter Certification also available.
See all Precise Countersink Gages
