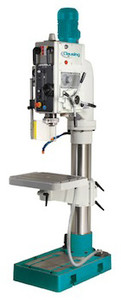

Clausing/Ibarmia Series B Geared-Drive Round-Column Drill w/ Auto Feed Reversing for Tapping, 40mm Drilling Capacity in Steel - B40RS

Brand:   Clausing
SKU:
B40RS
ID:
111534
Steel Drilling Capacity 1.57" (40mm)
Cast Iron Drilling Capacity 2.17" (50mm)
Call For Price Enable yes
callling
$0.00
Current Stock:
Adding to cart… The item has been added

Call for Pricing

Ibarmia Clausing

Clausing/Ibarmia Series B Geared-Drive Round-Column Drill w/ Auto Feed Reversing for Tapping, 40mm Drilling Capacity in Steel - B40RS

Series B Geared Drive with Push-Button Electromagnetic Clutch Automatic Feed Control


The B series is a rugged built Industrial Drilling Machine designed to handle large workpieces and offers the widest range of large capacity drilling and tapping. The B series is equipped with an electromagnetic clutch for precise automatic feed control that can be activated from any of the 4 white push-buttons built into the end of the feed crank handles.


Standard Features:

  • Automatic feed reversing system for tapping on "RS" models
  • Automatic feed and cut-off by electromagnetic clutch
  • Hardened and ground high quality steel gears
  • Speed plate and selecting levers on front of head
  • Gear box lubrication by automatic pump
  • Machine base with 2 T-slots, coolant tank and pump
  • Large rotating table with 3 T-slots
  • Feed crank wheel for manual feed
  • Front hand wheel for fine feed work
  • Depth scale and adjustable depth stop
  • Automatic tool ejector
  • Work Light
  • Built-in low voltage electrical equipment in machine head
  • Emergency STOP
  • Drill guard with microswitch


Specifications:

Standard Models B40
Auto feed reversing "RS" Models B40RS
Capacities
Maximum drilling capacity in steel 1.57" (40mm)
Maximum drilling capacity in cast iron 2.17" (50mm)
Maximum tapping capacity in steel 1.3" (33mm)
Maximum tapping capacity in cast iron 1.57" (40mm)
Specifications
Spindle taper 4MT
Quill diameter 3.46" (88mm)
Spindle travel (drilling depth) 7.87" (200mm)
Main motor power 3 Hp (2.2Kw)
Coolant pump motor power .1 Hp (.07Kw)
Number of speeds (see speed charts) 9
Number of automatic feeds 4
Auto feed range: in./rev. (mm/rev) .0039/.0079/
.0118/.0157
(0.1-0.2-0.3-0.4)
Dimensions and Weights
Height (A) 92.4" (2390mm)
Base: Length x Width (B) 31.9" x 21.3" (810x560mm)
Base to spindle (C) 49.61" (1280mm)
Spindle center to column (D) 15.16" (385mm)
Spindle to Table (E) Minimum: 5.51" (140mm)
Maximum: 30.71" (780mm)
Worktable: Length x Width (F) 18.9" x 22.1" (480x560mm)
Base height (G) 5.31" (135mm)
Column diameter (H) 7.09" (180mm)
Net weight 1.345 lbs. (610Kg)
Shipping weight 1,532 lbs. (695Kg)
Shipping dimension
(Length x Width x Height)
28" x 40 x 103"
(.7 x 1.2 x 2.6m)



View more Information & Specifications

View available Optional Equipment


See all Clausing/Ibarmia Series B Geared-Drive Round-Column Drills
