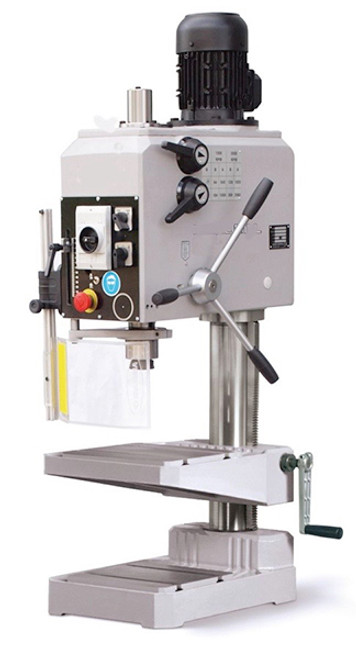

CLAUSING/IberDrill 19.68" Bench Drill Press Gear Head Drive Adjustable Work Table & Base - TM25

CLAUSING/IberDrill 19.68" Bench Drill Press Gear Head Drive Adjustable Work Table & Base - TM25

Clausing IberDrill Geared Head Drill Press with state or the art technology, allows you to select the best rpm for the tool with easy to use shift handles. 8 speeds 90 - 3360 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. 2 Speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.

• Geared Head Speed Drive – with 8 step speeds
• High/Low speed range selector
• Depth scale and adjustable depth stop
• Adjustable work table
• Work light
• Manual spindle reversing switch
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE markDrive Type: Geared Head

Specifications:

• Number of Speed Steps: 8
• Spindle Speeds (RPM): 90, 192, 300, 504, 612, 1020, 1740, 3360
• Column to Spindle Center: 9.84"
• Spindle Nose: 3MT
• Spindle Travel: 4.72
• Quill Feed: Manual
• Spindle to Work Surface Min/Max. (in): 4.33 / 19.7
• Column Diameter: 3.94
• Adjustable Table Surface (in): 10.6 x 11.8"
• Work Table T-Slots: 1/2
• Base Size (in): 22 x 15
• Drill Capacity with Manual Feed: 1"
• E-Stop Switch: Yes
• Voltage: 230 or 460
• Phase: Three
• Motor Horsepower: 1-1/2
• Machine Dimensions (WxDxH in): 20 x 32 x 47.6
