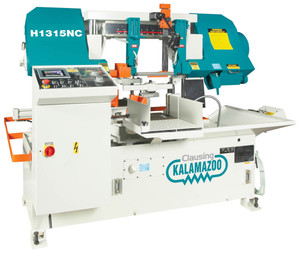

Clausing Kalamazoo Automatic NC Twin Column Bandsaw, 15" x 12.6" Max Rectangular Capacity - H1315NC
Brand: Clausing- SKU:
- H1315NC
- ID:
- 113226
$35,495.00
Clausing Kalamazoo Automatic NC Twin Column Bandsaw, 15" x 12.6" Max Rectangular Capacity - H1315NC
12.6" (320mm) Automatic NC Twin Column Bandsaw
Features:
- Oversized hydraulic cylinder
- Twin column design ensures rigid support during cutting cycle
- Hydraulic shuttle vice assembly
- Inverter controlled infinitely variable speed
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Smart NC-100 technology programmable up to 100 different jobs
- Easy recall and execution of stored parts
- Automatic shutoff after preset number of cuts or when out of stock
- 5.7" HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
- Automatic kerf loss compensation & computer controlled multiple indexing
- Precision feed pressure & feed rate
- Bundle/single cutting mode switch
- Automatic height setting feature
- Hydraulic front and rear vises
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Adjustable cut-off stock fence
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
Accessories:
- CM1301N Chip Conveyor
- CM1302N Hydraulic Bundle Clamps
- VP1200NC Variable Vise Pressure System
- SA20 Heavy-duty Roller Table 10’ x 15”
- SA21 Heavy-duty Roller Table 5’ x 15”
- P11 Stock Stand Assembly 30”–39”
- CSR1 SAWZIT 1 Gallon
- CSR5 SAWZIT 5 Gallon
Specifications:
| Model | H1315NC |
| Motor | 5 HP (3.75 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 1 HP (.75 kw) |
| Hydraulic Oil Capacity | 6.6 gallons (25 liters) |
| Blade Speeds (Variable Speed) | 49 - 262 fpm (15 - 80 m/min) |
| Blade Size | 1.25" x .042" x 166.9" (34 x 1.1 x 4240mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 11.9 gallons (45 liters) |
| 90° Cutting Capacity - Round | 12.6" (320mm) |
| 90° Cutting Capacity - Square | 12.6" (320mm) |
| 90° Cutting Capacity - Rectangular (H x W) | 15" x 12.6" (380 x 320mm) |
| Feed Accuracy | ±.004" - .008" (±0.1 - 0.2 mm) |
| Length of Remnant Manual | .59" (15 mm) |
| Length of Remnant Automatic | 1.97" (50 mm) |
| Minimum Cut Thickness | .197" (5 mm) |
| **Bundle Cutting Width | 7.48" to 11.81" (190 to 300mm) |
| **Bundle Cutting Height | 2.75" to 5.51" (70 to 140mm) |
| Feed Length/Index | 15.86" (403mm) |
| Max. Feed | 255.9" (6500mm) |
| Length | 79.13" (2010mm) |
| Width | 78.75" (2000mm) |
| Height | 70.3" (1785mm) |
| Bed Height | 31.1" (790mm) |
| Net Weight | 3509 lbs. (1592kg) |
| Shipping Weight | 3766 lbs. (1708kg) |
*Other voltages optional.
**When machine is equipped with optional hydraulic bundle cutting attachment. All specifications subject to change without notice or obligation.
