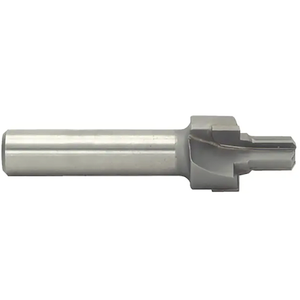

Everede Carbide Tipped Coolant Fed Port Contour Cutters, 1/2"-20 Port Size, Tube #5, 0.43" Pre Drill Size
Brand: Everede Tool- SKU:
- 24-120-352
- ID:
- 242974
$334.95
CTPC-500-20-649CONTOUR CUTTER
Everede Carbide Tipped Coolant Fed Port Contour Cutters, 1/2"-20 Port Size, Tube #5, 0.43" Pre Drill Size
- For drilled or cast holes.
- Port contour cutters are used to produce a proper fit on high-pressure hydraulic fittings.
- Port Tools can be used for both lathe and mill applications.
- Port contour cutter can produce the form and finish internal straight thread O-ring ports in a single operation.
- Reamer-style pilots.
- 12°/15° axial rake.
- All cutters have 3 carbide-tipped flutes.
- The center ground within .0002 inch concentricity.
- SAE & MS standard port contour cutters.
- Well-placed coolant holes provide direct access to the cutting area.
- Made from heat-treated alloy steel with carbide tip inserts.
- Port Standard: SAE AS5202/MS33649
- Country of Origin: U.S.A.
| A | B | C | D | E | F | G | H | J |
| ±.002" | +.005"/-.000" | +.015"/-.000" | Min. Dia. | Min. Length | +.015"/-.000" | -.0005"/-0010" | Length | Length |
| .517" | .517" | .625" | .812" | .661" | .075" | 1/2" | 1-1/2" | 2" |
