Dake H-Frame Utility Hydraulic Bench Press B-10, 10 ton, 36

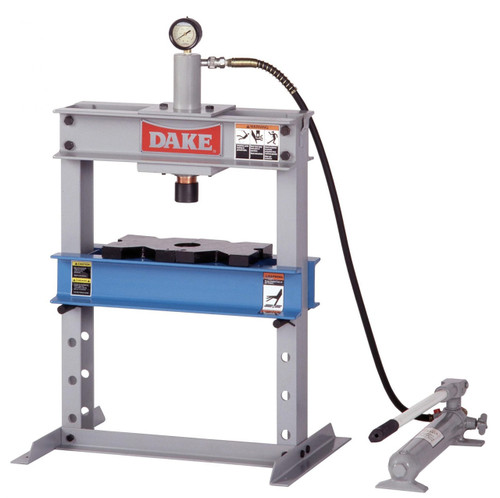

Dake H-Frame Utility Hydraulic Bench Press B-10, 10 ton, 36" height - 972200

Brand:   Dake
SKU:
972200
ID:
83636
callling
$1,195.00
Current Stock:
Adding to cart… The item has been added

Dake

Dake H-Frame Utility Hydraulic Bench Press B-10, 10 ton, 36" height - 972200


Features:

  • Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation
  • Convenient top mounted gauge reads in tons and psi to monitor pressure
  • Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
  • Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
  • The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces


Standard Equipment:

  • Frame
  • Flat Ram Nose
  • Combination Table Plates/V-Blocks
  • Step Reduced Ram Nose


Specifications:

Model B-10
Order Number 972200
Capacity 10 tons
Operation Manual
Horsepower n/a
Voltage n/a
Width between uprights 16-3/4"
Width between table channels 3”
Minimum ram to table 4”
Maximum ram to table 16”
Ram travel 6”
Screw Travel n/a
Horizontal workhead travel n/a
Footprint 23” x 18”
Height 36”
Weight 165 lbs
Base 23” x 18”
Ram advance speed n/a
Pressing speed n/a
RPM n/a
Air Pressure n/a






Click to View Owner's Manual


Click to View Parts List
