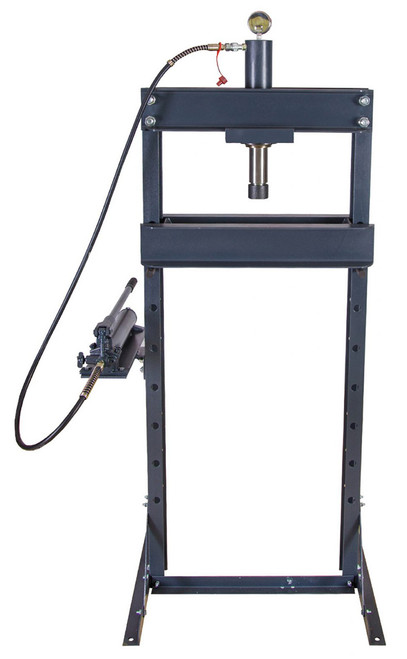

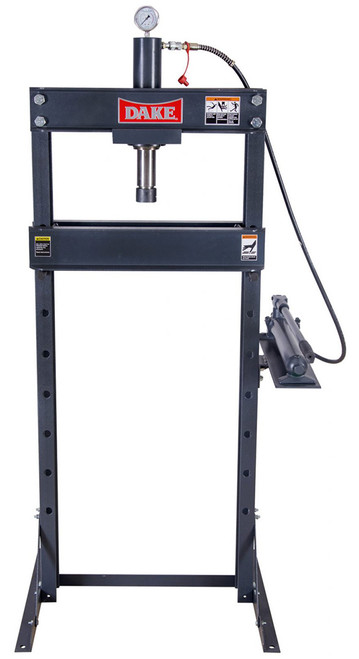

Dake H-Frame Utility Hydraulic Presses
Features:
- Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation
- Convenient top mounted gauge reads in tons and psi to monitor pressure
- Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
- Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
- The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces
Standard Equipment:
- Frame
- Flat Ram Nose
- Combination Table Plates/V-Blocks
- Step Reduced Ram Nose
Specifications:
| Model | B-10 | F-10 | F-20 |
| Order Number | 972200 | 972210 | 972220 |
| Capacity | 10 tons | 10 tons | 20 ton |
| Operation | Manual | Manual | Manual |
| Horsepower | n/a | n/a | n/a |
| Voltage | n/a | n/a | n/a |
| Width between uprights | 16-3/4" | 16-3/4” | 22" |
| Width between table channels | 3” | 3” | 4" |
| Minimum ram to table | 4” | 0-4” | 4" |
| Maximum ram to table | 16” | 38” | 39" |
| Ram travel | 6” | 6” | 8" |
| Screw Travel | n/a | n/a | n/a |
| Horizontal workhead travel | n/a | n/a | left/right of center |
| Footprint | 23” x 18” | 24" x 28" | 34" x 26" |
| Height | 36” | 60” | 70" |
| Weight | 165 lbs | 225 lbs | 283 lbs |
| Base | 23” x 18” | 24” x 28” | 34" x 26" |
| Ram advance speed | n/a | n/a | 3/16" per stroke |
| Pressing speed | n/a | n/a | n/a |
| RPM | n/a | n/a | n/a |
| Air Pressure | n/a | n/a | n/a |
Click to View Owner's Manual
Click to View Parts List
