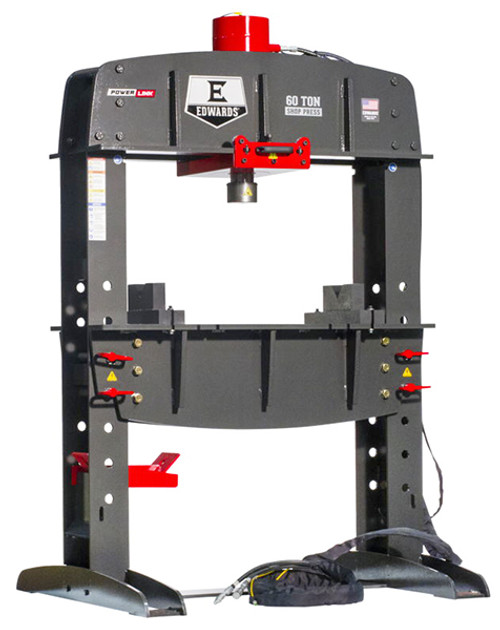

Edwards 60 and 110 Ton Power Link Shop Presses
The 60 and 110 Ton Shop Presses solve a variety of demands to improve user’s productivity. Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through.
Improved Productivity with PLC (Programmable Logic Control)
Programmable Logic Control improves press accuracy with precision pressure and increased efficiency with automatic returns creating shorter cycle times. Up to 50% time savings. Set your pressure with adjustable PSI. The magnetic base allows for easy mounting of the PLC anywhere on the machine. A perfect fit for shops that produce repeatable pieces that cannot justify a fully automatic press brake.
- Rolling cylinder provides maximum adaptability.
- Open-sided design allows longer material to pass through the frame.
- Accepts a variety of standard and custom tooling. Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.
- Electric foot pedal with integrated jog control.
- 20’ quick-connect hoses for simple “plug & play” operation.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket. Pressure gauge provides accurate measurements allowing for easy repeatable parts production.
Specifications:
- Rating (Tons): 60
- Cylinder (In.): 4
- Stroke (In.): 12-1/4
- Working Area (In): 39-1/4 x 42
- Dimensions (In): 48 x 54 x 86
Specifications:
- Rating (Tons): 110
- Cylinder (In.): 4
- Stroke (In.): 12-1/4
- Working Area (In): 37-7/16 x 48
- Dimensions (In): 48 x 64 x 88
For Edwards Portable Power Units Click Here
For Edwards Press Brakes and Accessories Click Here
