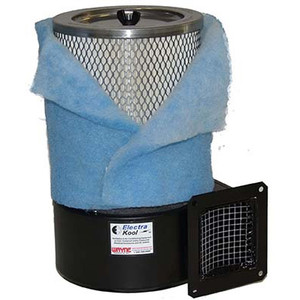

Electra-Kool™ Model 150 Industrial Blower, 1-Phase, Filter: Polyester - 10036

Electra-Kool™ Model 150 Industrial Blower, 1-Phase, Filter: Polyester - 10036

An industrial blower fan from Electra-Kool™ is the perfect solution for cooling & ventilating your electrical cabinet, DC motor, or other industrial area while keeping fine dust and dirt out. Prevent internal components and electrical enclosures from malfunctioning due to excessive heat or dust. Electra-Kool™ is a fraction of the price of an air conditioner and or compressed air device, saving you both operating and maintenance costs for years.

Electra-Kool Filtered Blowers are a low-cost alternative to both air conditioners and compressed air systems. By delivering clean, filtered ambient air to your electrical enclosure, Electra-Kool blowers prevent factory down-time at a fraction of the cost.

Electra-Kool blowers have reliably kept electrical equipment clean and cool since their launch. Trusted by industrial customers everywhere and always in stock.

Electra-Kool Features:

• Simple "bolt-on" design. Secured easily with nuts and bolts. Filters are also easily swapped out with a simple wing-nut.
• High-Efficiency motors made in the USA - lower your operating costs significantly.
• Prevents microscopic dust particles from damaging your electrical components with our pleated paper filters (99.9% efficiency @ 0.5 Microns) or HEPA filters (99.97% @ 0.3 Microns).
• Pre-filter wraps that extend the life of the primary filter
• Mesh finger-guards on both the intake and outlet - Safety First.

Accessories & Options:

• All Electra-Kool blower systems come with louvered vents for hot air release, a thermometer for internal temperature monitoring, and an air deflector plate to direct air toward a hot spot.
• Polyester (medium filtration) or metal mesh (coarse filtration) filters also available.
• FilterKits are available for adding our filters to filterless blowers, Electra-Kool or other.

ELECTRA-KOOL™ 150 CFM INDUSTRIAL BLOWER FEATURES:

• Enclosures 10-25 Cubic Feet
• Draws 0.72 Amps
• 155 CFM
• 115VAC
• Powder-Coated Steel Housing
• Rectangular flange is 3.75" x 4.25"
• Cutout is 2-5/8" x 2-7/8"
• 150-160 CFM of air flow.
• Recommended capacity: 25 cubic foot enclosure OR 10 HP DC motor
• 11.25" height, 7.2" deep, 7.3" wide
• Powder-coated steel housing
• Metallic, galvanized steel impeller
• A rectangular flange (3-7/8" x 4.25") that mounts easily to the side or top of any enclosure
• Filter surface area of 5.6 sq. ft., much larger than comparable flat panel filters
• Simple assembly: Filters require just one wingnut – great for quick cleaning
• Finger-guards installed on both the inlet and outlet for your safety
• One year manufacturing warranty – just in case.

MODEL 150 MOTOR SPECIFICATIONS:

• 115V/1/60Hz
• 1/8 HP, 2350 RPM, 62 dBA
• 0.72 Amp draw (80 watts)
• 7.5 mfd @ 370V capacitor included
• UL & CSA listed

See all versions of the Electra-Kool™ Model 150 Industrial Blower
