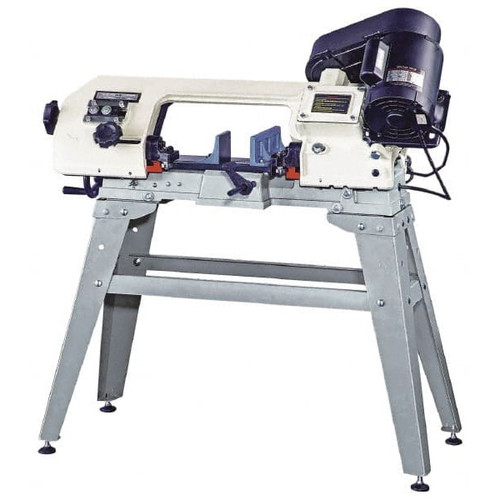

Enco 5" x 6" Manual Combo Horizontal & Vertical Bandsaw - ENCO-128
Brand: Enco- SKU:
- ENCO-128
- ID:
- 386624
$979.95
Enco 5" x 6" Manual Combo Horizontal & Vertical Bandsaw - ENCO-128
5" x 6" Manual Combo Horizontal & Vertical Bandsaw
1 Phase, 45° Vise Angle of Rotation, 0.33 hp, 110/220 Volts, Step Pulley Drive
Features:
- Three blade speeds of 80-120-200 SFPM
- Shuts off automatically when material is cut
- With graduated scale for the mitering vise
- Low noise while operating
- 1/3 HP single phase motor - 110/120V
- Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
- Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
- Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
Customer Assembly of Stand Required.
Includes one blade.
Specifications:
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) at 90 Degrees (Inch) | 5 x 6 |
| Maximum Capacity (Rounds) at 90 Degrees (Inch) | 5 |
| Phase | 1 |
| Coolant System | No |
| Maximum Capacity (Rectangular) at 45 (mm) | 76 x 115 |
| Maximum Capacity (Rectangular) at 45 (Inch) | 3 x 4-1/2 |
| Maximum Capacity (Rounds) at 45 (Inch) | 3 |
| Maximum Capacity (Rounds) at 45 (mm) | 76.20 |
| Blade Width (mm) | 12.70 |
| Blade Width (Decimal Inch) | 0.5000 |
| Blade Width (Inch) | 1/2 |
| Blade Speeds (SFPM) | 80, 120, 200 |
| Blade Length (mm) | 1635.00 |
| Blade Length (Decimal Inch) | 64.3701 |
| Throat Band to Column (Inch) | 5 |
| Blade Thickness (mm) | 0.64 |
| Blade Thickness (Decimal Inch) | 0.0250 |
| Horsepower (HP) | 0.33 |
| Capacity Under Guides (Inch) | 6 |
| Overall Height (mm) | 985.01 |
| Overall Height (Decimal Inch) | 38.7800 |
| Voltage | 110/220 |
