ETM ER11 Through ER40 Straight Shank Tapping Attachments
- Practical and efficient tap holding by the ER spring collet without using jaw drivers.
- Compact design for minimal clearance application.
- Compensates for machine feed and tap pitch variances.
- Floating mechanism compensates for misalignment between tap and workpiece.
- Tension and compression type for CNC milling and lathes with reversing motors.
- Heavy duty design for high torque drive, ensures the same accuracy of the tap itself.
- Right and left hand tapping.
- The tapping head is coolant and dirt proof.

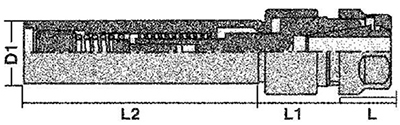

| Item No. | D1 | L2 | L1 | L |
| 67-810-852 | 0.625" | 6.00" | - | 0.75" |
| 67-810-853 | 0.750" | 3.15" | 1.61" | 0.95" |
| 67-810-854 | 0.750" | 3.15" | 1.89" | 1.06" |
| 67-810-856 | 1.000" | 3.15" | 2.01" | 1.18" |
| 67-810-857 | 1.000" | 3.15" | 2.91" | 1.18" |
| 67-810-859 | 1.000" | 3.15" | 3/54" | 1.81" |
