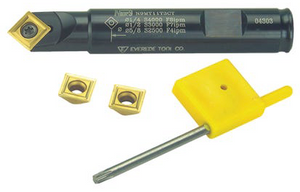

Everede 90º Indexable NC Spot Drill Engraving Holder Set w/3 Inserts, 0.750" Shank Diameter - 99616-22-3/4.17 2071 KIT
Brand: Everede Tool- SKU:
- 24-571-504
- ID:
- 243925
| Min. Cutting Dia. | 0.047" |
| Max. Cutting Dia. | 0.866" |
| Insert | N9MT1704CT |
$538.95
Everede 90º Indexable NC Spot Drill Engraving Holder Set w/3 Inserts, 0.750" Shank Diameter - 99616-22-3/4.17 2071 KIT
- Suitable for engraving all types of materials, such as plastic, non-ferrous, metal, aluminum, copper carbon steel, and stainless steel.
- Feed rate 0.08mm (0.003") / rev. apply to aluminum; 0.05mm (0.002") / rev. apply to stainless steel.
- Use on CNC lathes, CNC turning centers, and machining centers, Milling machines, SPM machines, and more.
- No burrs, especially in copper, aluminum, and stainless steel.
- Reduces engraving cycle time as tool length remains unchanged.
- No need to reset after changing insert or cutting edge.
- Economical as inserts require no resharpening.
- Offers excellent repeatability in operation.
- One tool will perform multiple applications.
- Shank Style: Weldon
Includes:
(1) 99616-22-3/4.17 (3/4"ø)
(3) N9MT1704CT-NC2071 Coating Inserts
(1) Torx® Key
