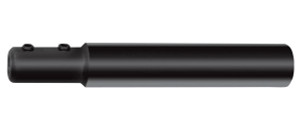

Everede Extension Sleeve for Round Shank Cutting Tool #BBS-375/750, 3/4" Shank Dia., 3/8" Bore Dia., 5" Length
Brand: Everede Tool- SKU:
- 24-571-243
- ID:
- 243879
| Model | BBS-375/750 |
| Bore Dia D1 | 3/8" |
| Shank Dia D2 | 3/4" |
| Head Dia D3 | 5/8" |
| OAL A | 5" |
| Bore Depth B | 1-1/2" |
$169.95
Everede Extension Sleeve for Round Shank Cutting Tool #BBS-375/750, 3/4" Shank Dia., 3/8" Bore Dia., 5" Length
Features:
- Holders are flatted for quick set-up
- Easy centerline location
- Precision ground for accuracy
- May be used to extend boring bar reach
- ID's range from 3/16" to 3/4"; OD's range from 1/2" to 1-1/2"
- Can also be used as an end mill holder
Specifications:
| BRAND | EVEREDE |
| MODEL # | BBS-375/750 |
| SHANK DIAMETER (D2) | 3/4" |
| OVERALL LENGTH (A) | 5" |
| BORE DIAMETER (D1) | 3/8" |
| HEAD DIAMETER (D3) | 5/8" |
| BORE DEPTH (B) | 1-1/2" |
| SCREW LOCATION CLOSEST TO END OF TOOL (C) | 3/8" |
| SECOND SCREW LOCATION (E) | 3/4" |
| SCREW SIZE | #10-32 |
| SHANK STYLE | Round Shank |
| TYPE | Extension Sleeves For Round Shank Cutting Tool |
| WEIGHT | 0.53 lbs. |
| COUNTRY OF ORIGIN | UNITED STATES OF AMERICA |
See all Everede Extension Sleeves for Round Shank Cutting Tools
View more boring bars, cutting tools & carbide inserts from Everede Tool Company
