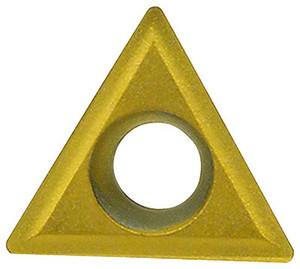

Everede Indexable Carbide Turning Insert, 60° Triangle TPGH-215, 0.016" Radius, Grade TL120
Brand: Everede Tool- SKU:
- 24-570-609
- ID:
- 243687
| For Boring Bar | Series C |
| Shape | 60° Triangle |
| Insert Number | TPGH-215 |
| Radius | 0.016" |
| Grade | TL120 |
$15.95
Everede Indexable Carbide Turning Insert, 60° Triangle TPGH-215, 0.016" Radius, Grade TL120
60° Triangle - TPGH - For Series C Boring Bars - .250" I.C., .096" Thick, 11° Relief
Features:
- 60° Triangle Shaped Indexable Inserts
- Versatile and dependable, "T" shaped inserts are one of the most popular shapes in the industry
- Negative inserts can provide up to 6 cutting edges
- Available in multiple chipbreakers, grades and from different manufacturers
Specifications:
| BRAND | EVEREDE |
| INSERT SHAPE & ANGLE | 60° Triangle |
| TOOL MATERIAL | Carbide |
| INSERT STYLE | TPGH |
| INSERT SIZE | 2(1.5)1 |
| GRADE | TL120 |
| INSERT IC | 1/4" |
| INSERT THICKNESS | 3/32" |
| INSERT RADIUS | 0.016" |
| RELIEF ANGLE | 11° |
| COATING | PVD / TiAlN |
| ANSI | TPGH2(1.5)1 TL120 |
| DESIGNATION | TPGH-215 TL120 |
| COATED | YES |
| INSERT # | TPGH-215 |
| ISO | TPGH110204 TL120 |
| INSERT SHAPE | 60° Triangle |
| ISO K CAST IRON | X |
| ISO M STAINLESS STEELS | X |
| ISO P STEEL | X |
| ISO S HRSA EXOTIC | X |
| MODEL # | TPGH-215-TL120 |
| WEIGHT | 0.010 lbs. |
| COUNTRY OF ORIGIN | UNITED STATES OF AMERICA |
See all Everede Indexable Carbide Turning Inserts
View more boring bars, cutting tools & carbide inserts from Everede Tool Company
