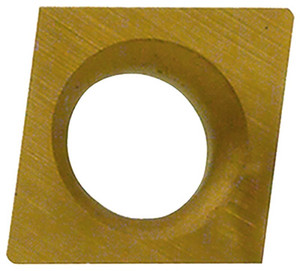

Everede Indexable Carbide Turning Insert, 80° Diamond CDCD-15, 0.016" Radius, Grade CVM2
Brand: Everede Tool- SKU:
- 24-570-864
- ID:
- 243756
| For Boring Bar | Series A |
| Shape | 80° Diamond |
| Insert Number | CDCD-15 |
| Radius | 0.016" |
| Grade | CVM2 |
$15.95
Everede Indexable Carbide Turning Insert, 80° Diamond CDCD-15, 0.016" Radius, Grade CVM2
80° Diamond - CDCD - For Series A Boring Bars - .156" I.C., .040" Thick, 15° Relief
Features:
- 80° Diamond Shaped Indexable Inserts
- Versatile and dependable, "C" shaped inserts are one of the most popular shapes in the industry
- Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (separate holder needed to utilize 100° cutting edge)
- The 100° cutting edges are ideal for facing operations
- Available in multiple chipbreakers, grades and from different manufacturers
Specifications:
| BRAND | EVEREDE |
| INSERT SHAPE & ANGLE | 80° Diamond |
| TOOL MATERIAL | Carbide |
| INSERT STYLE | CDCD |
| INSERT SIZE | 1.2(0.6)1 |
| GRADE | CVM2 |
| INSERT IC | 5/32" |
| INSERT THICKNESS | 4/25" |
| INSERT RADIUS | 0.016" |
| RELIEF ANGLE | 15° |
| COATING | PVD / TiN |
| ANSI | CDHB1.2(0.6)1 CVM2 |
| DESIGNATION | CDCD-15 CVM2 |
| COATED | YES |
| INSERT # | CDCD-15 |
| ISO | CDHBS4T004 CVM2 |
| INSERT SHAPE | 80° Diamond |
| ISO K CAST IRON | X |
| MODEL # | CDCD-15-CVM2 |
| WEIGHT | 0.005 lbs. |
| COUNTRY OF ORIGIN | UNITED STATES OF AMERICA |
See all Everede Indexable Carbide Turning Inserts
View more boring bars, cutting tools & carbide inserts from Everede Tool Company
