Extech Digital Tension & Compression Force Gages

Brand:   Extech
ID:
361806
Call for Pricing
Current Stock:

Extech

Extech Digital Tension & Compression Force Gages

Digital Force Gages


Push/Pull Measurements in kg, lbs, oz and Newton Units


0.01 Resolution, Digital Tension & Compression Force Gage
Accurate Up to 0.4%, AC & Battery Power Source


Features:

  • Exclusive load cell measurement transducer.
  • Over range, low battery and advanced function indication.
  • Zero adjust push-button and peak hold switch.
  • Selectable fast (0.2 secs.)/slow (0.6 secs.) response.
  • 5 digits, 0.4" (10 mm) LCD reversible display.

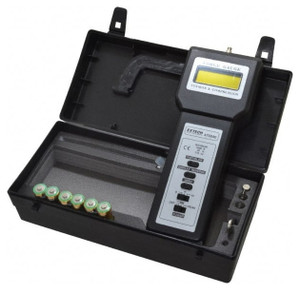

  • Complete with hook adapter for tension, compression adapters (flat, cone and chisel head), 5" extension rod, six "AA" batteries and carrying case.
  • Dimensions: 8.9" x 3.3" x 1.5"


Model # 475040

  • 5000g, 176 oz. and 49 Newtons measurement capacity.
  • Accuracy (23°C): ±0.5% + 2 digit


Model # 475044

  • 20kg, 44.1 lbs, 196 Newtons push/pull measurement capacity.
  • Accuracy (23°C): ±0.4% + 1 digit


Specifications:

Item Number 51-367-1
Model 475040
Capacity (gf) 5000
Capacity (N) 49
Capacity (ozf) 176
Resolution (ozf) 0.05
Resolution (gf) 1
Resolution (N) 0.01
Accuracy (%) 0.4
Tip Type Chisel; Cone; Flat
Power Source AC; Battery
Battery Type 1.5V AA
Includes (6) AA Batteries; 5" Extension Rod; Carrying Case;
Compression Adapter; Hook Adapter for Tension



Item Number 51-363-0
Model 475044
Capacity (N) 196.00
Capacity (kgf) 20.00
Resolution (lbf) 0.0100
Resolution (kgf) 0.0100
Resolution (N) 0.0500
Accuracy (%) 0.5000
Tip Type Chisel; Cone; Flat
Housing Material Plastic
Power Source AC; Battery
Battery Type 1.5V AA
Includes (6) AA Batteries; 5" Extension Rod; Carrying Case;
Compression Adapter; Hook Adapter for Tension
