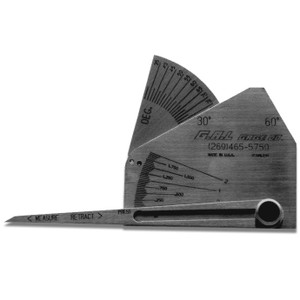

G.A.L. Skew-T-Fillet Weld Gage
Check Angle of Vertical Member, Weld Acute Side, Weld Obtuse Side, Available in Inch or Metric
Measures Fillet or Groove Welds Between Members at 90° or Skewed Members
Weld Gage
- Stainless steel
- Measures angles of intersecting members welds at acute angles, wets at obtuse angles and fillet weld leg sizes when intersecting members are at 90°
- Size: 2-1/2" L x 5-1/8" W
View the User Guide
CALCULATOR:
A handy compilation of mathematical relationships between leg length, throats, skew angles and inspection dimensions. A must for designers and inspectors. The perfect companion to the G.A.L. Skew-T Fillet Weld Gauge, and included with your purchase.
for use with the G.A.L. Skew-T-Fillet Weld Calculator
