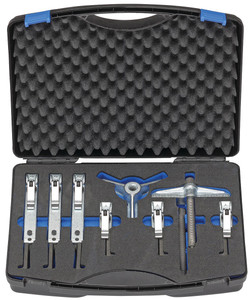

Gedore 1.07/K-1-SE 200S Puller set with 6 hooks, 90x100/200 mm
1.07/K-SE S Puller set with 6 hooks
The forged leg feet are very slim particularly suitable for barely accessible places, Quick release legs for fast, easy set-up and adjustment, Contents: 2 spindles, 1 cross-beam each 2- and 3-arm pattern, and 6 slim quick-release pulling legs in 2 lengths, Clamping reach 100 mm = thickness of hooked foot at tip (e) 3.7 mm, max. 2.5 t, Clamping reach 200 mm = thickness of hooked foot at tip (e) 2.0 mm, max. 2.0 t, Clamping depth 200 mm = hook foot thickness (e) 2.0 mm, max. 2.0 t
Puller tools -> Pullers / puller sets -> Sets of pullers
Specifications:
| Clamping width (max.) external pulling [mm] | 90 mm |
| Country of origin | Germany |
| Net weight [kg] | 4,2 kg |
| Spindle thread size | M 14x1,5 x 140 |
| Thickness of hooked foot at tip | 3,7 mm |
| Tractive force (max.) [t] | 2,5 |
| Usable depth of hooked foot d2 [mm] | 7,5 mm |
| Version/Execution | In robust plastic case |
| Width across flats [mm] | 17 mm |
| Width of hooked foot [mm] | 27 mm |
| Usable clamping reach | 100 - 200 mm |
| Parts List | 106/203 Cross beam 2-arm 220 mm 107/203 Cross beam 3-arm 220 mm 106/A-100-SE Pull-off hook with quick release clamping piece 100 mm (3x) 06/S-200-SSE Slim pull-off hook with quick release clamping piece 200 mm (3x) E-1.1406140 Spindle 17, M14x1.5, 140 mm (2x) 107/199-SE 200S Plastic case with foam insert for 1.07/K-1-SE 200S |
