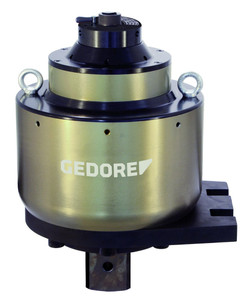

Gedore DVV-540RS Torque Multiplier DREMOPLUS ALU 54000 Nm - 2653168
Brand: Gedore- SKU:
- 2653168
- ID:
- 889631
Gedore DVV-540RS Torque Multiplier DREMOPLUS ALU 54000 Nm
DVV-540RS Torque multiplier DREMOPLUS ALU 54000 N·m / 40330 lbf·ft
Especially suitable for: Heavy industry, Oil industry, Petrochemicals, Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections, With a three-stage planet gear, High-performance aluminum housing, Reaction arm of chrome-vanadium steel, Model with transmission ratio 1:175, With anti-wind-up ratchet (RS), With non-destructive overload protection "Slipper" to protect the gearbox, right and left hand, With fixture for welding on a reaction arm (optional), Guaranteed accuracy: Better than +/- 3 % tolerance, To operate with a suitable torque wrench, 1 actuating arm hexagonal 27 mm, 354 mm, No. E-28 LRZ-27, Output square with hole for Impact sockets with locking pin and ring
Torque tools -> Torque multipliers/Accessories -> Torque multipliers
Specifications:
| Country of origin | Germany |
| Net weight [kg] | 64,6 kg |
| Version/Execution | With fixture for welding on a reaction arm |
| Total length [mm] | 230 mm |
| Parts List | Torque multiplier DREMOPLUS ALU Delivery in stable box on pallet Adjustment table Detailed technical information is available on request |
| Drive connector square (male) | 3/4" |
| Drive connector square female (metric) | 6,3 mm |
| Drive connector square female [inch] | 3/4" |
| Eingangskraft [N·m] | 380 N·m |
| Input force [lbf·ft] | 280 lbf·ft |
| Multiplication at the ratio | 0.163194444 |
| Output square | 2.1/2 |
| Output square (inch) | 2.1/2 |
| Output square (metric) | 63 mm |
| Output torque (max.) [lbf-ft] | 40330 |
| Output torque (max.) [N-m] | 54000 |
| Total height without reaction arm | 415 |
| Total width without reaction arm | 270 |
| Version reaction arm | without |
