FlexArm Hydraulic Tapping Arm - GH-30

Brand:   FlexArm
SKU:
GH-30
ID:
323542
Working Range 20 - 76"
Tap Capacity #6 - 1-1/4"
Max Torque 188/63 ft/lbs
Speed Range 140 - 500 RPM
callling
$13,722.00
Current Stock:
Adding to cart… The item has been added

FlexArm

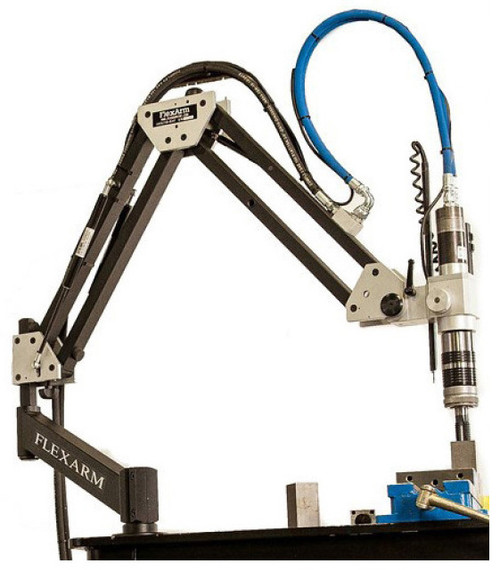

FlexArm Hydraulic Tapping Arm - GH-30


When your machining center isn't milling, drilling, or boring, it’s costing your company money. Tapping is an inefficient and costly CNC operation best done by the FlexArm. Your CNC operator can use the FlexArm to tap holes, while the machine center works on the next part. Using the FlexArm in conjunction with your machining center saves money, time, tools, and materials.


Just Plug and Tap!


Features:

  • Operates on 480 volt, 3-phase ELECTRIC
  • Independent Speed Control (Forward & Reverse)
  • Tap capacity up to 1-1/4"
  • Working range 20"–76" in
  • Gearbox with 2 speeds
  • Size 3 Quick Change Chuck


Optional Accessories:

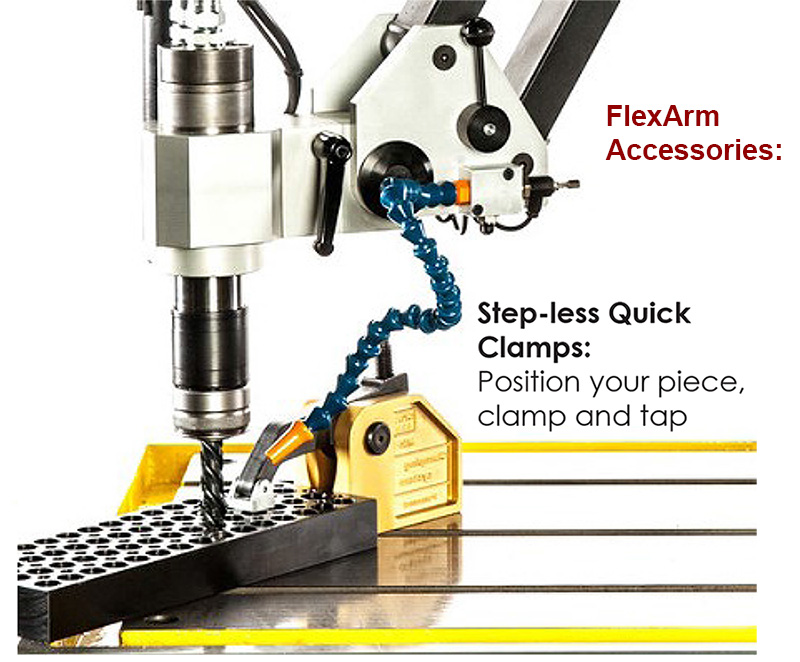

Step-less Quick Clamps

  • Position your piece, clamp and tap

Automatic Depth Stop

  • A FlexArm Automatic Depth Stop allows the operator to control depth and maintain consistency. Also availible with digital depth control.

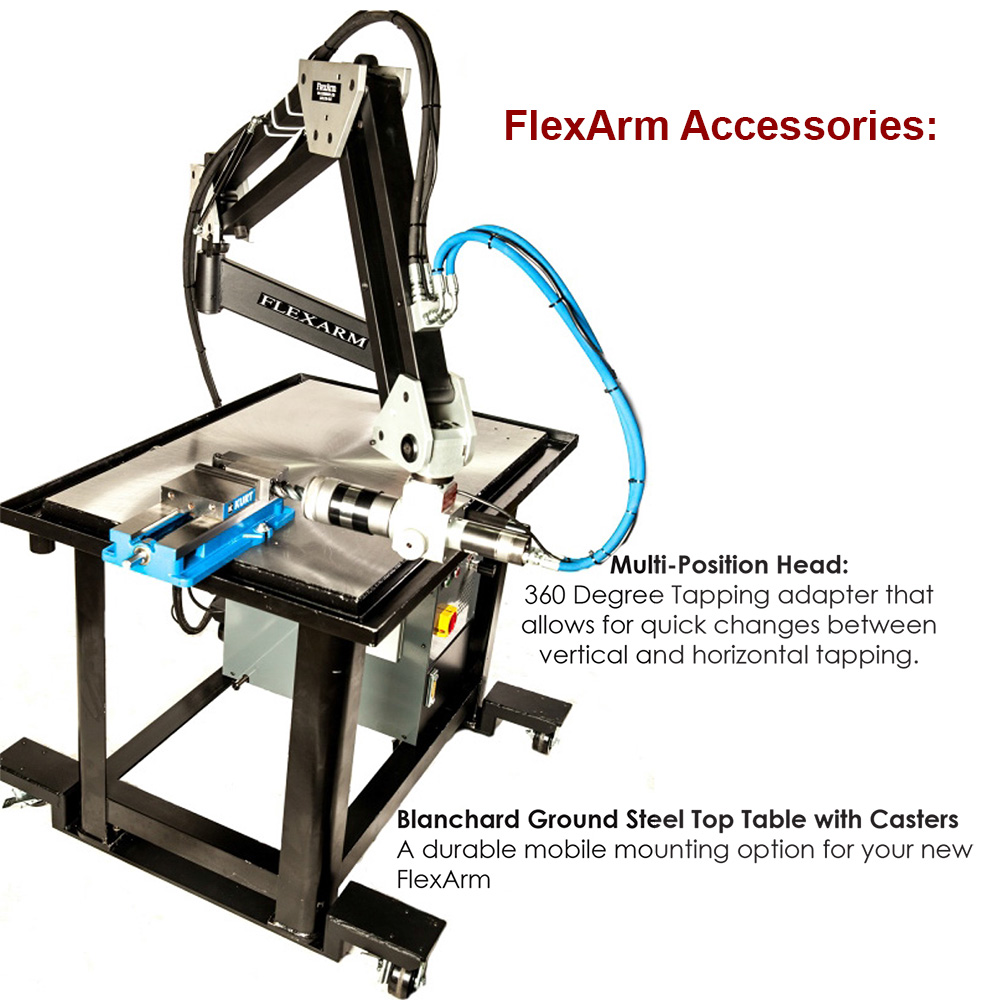

Multi-Position Head

  • 360 Degree Tapping adapter that allows for quick changes between vertical and horizontal tapping.

Blanchard Ground Steel Top Table with Casters

  • A durable mobile mounting option for your new FlexArm



Specifications:

Model GH 30
Working Range 20" - 76"
Tap Capacity #6 -1-1/4"
Max Torque 188/63 ft/lbs
Speed Range 140 - 500 RPM
Voltage 480V, 3-phase
Quick Change Chuck Size 3



See all FlexArm Hydraulic Tapping Arms
