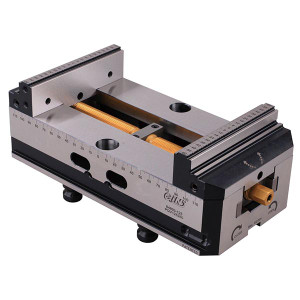

Gin Tech Precision 96mm Zero-Point Vise System, 125mm Jaws - 3900-2242

Gin Tech Precision 96mm Zero-Point Vise System, 125mm Jaws - 3900-2242

• Quick reversible jaw change with patented design.
• Special swing 1.50 degree design on one side of clamping jaw for better grip when workpiece is not parallel.
• Zero-Point vise workholding system enables all direction clamping.
• The Vise can lock and unlock pins with 180-degree rotation.
• Omni-directional clamping is used for uniformity while performing all-directional clamping.
• The Zero-Point Vise System works with industry-standard products using 96-mm pin spacing.
• It enables self-centering operations for five-axis machines.
• The device has fully protected and sealed lead screws and incorporates an angle lock mechanism to prevent workpiece lifting when locked. The pin-locking mechanism consists of a cam that is operated using an eccentric pin.
• The cam can lock all four pins simultaneously for enhanced precision and clamping performance.
• The force vector transmission system can act by binding the pins uniformly in all directions.
• Thanks to the dovetail guide and the pull-down principle, the connection between the clamping bar and the vise is extremely robust.
• The quick clamping system defies even the highest cutting forces and thus proves its extraordinary stability and load capacity.
• Additional features include high-precision self-centering clamping with maximum repeatability. A compact design for ease of accessibility. A wide clamping range. Clamping force up to 14kN. Jaw width is 75mm and jaws have hardened serrated teeth. The 5-Axis Vise can be mounted on the clamping bars of the quick clamping system with absolute flexibility and positional accuracy.
• Made in Taiwan.

Specifications:

• Body Length: 10.24"
• Clamping Range: 0-9.13"
• Jaw Width: 4.92"
• Zero-Point System (Zero-Point Bolt Pattern): 3.78"
• Zero-Point Stud Diameter: 0.79"
• Tightening Torque: 100Nm
• Clamping Force: 16kN
• Centering Accuracy: 0.0002"/0.005mm
