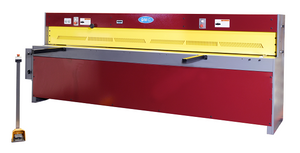

GMC Electrical Power Shear, 4 ft. x 12 Ga., with 26" Power Back Gauge - EPS-0412M
Brand: GMC- SKU:
- EPS-0412M
- ID:
- 413372
| Blade Length | 52" |
| Cutting Capacity | 12 - 16 Ga. |
| Motor | 4HP, 220V/440V |
$11,328.00
GMC Electrical Power Shear, 4 ft. x 12 Ga., with 26" Power Back Gauge - EPS-0412M
Model # EPS-0412M
4' x 12 Ga., 4HP, 220V/440V
Standard Features:
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
Standard Included Equipment:
- 26" manual back gauge with one side operated handwheel.
- 60" long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Optional Equipment:
- Safety fence for enclosure of the back side of the machine - (Call)
Specifications:
| Cutting capacity - Mild Steel | 4' x 12 Ga. |
| Cutting capacity - Stainless Steel | 4' x 16 Ga. |
| Blade Length | 52" |
| Strokes per Minute | 35 |
| Worktable Height | 32" |
| Front Support Arm | 36" |
| Back gauge | 26" Power Back gauge |
| Blade Rake Angle | 2 degree |
| Main Motor | 4HP, 220V/440V |
| Machine Weight | 3,350 LBS |
| Machine Dimensions | 72" x 42" x 67" |
